Forward Controls Design ASF-SF-50 – FRT – 50 Degree Short Throw

Description

Modified select fire selector for three position forced reset triggers. Cam profiles are machined to work with the below listed models

Sharp edges are stoned,and machined surfaces are refinished to return to the OEM appearance.

Designed to work with the following three position forced reset triggers:

• DTT FRT-15L3
• Rare Breed FRT-15L3
• Partisan Disruptor

Not tested in any other models. Will not convert older two position models to three position.

—————————————————-

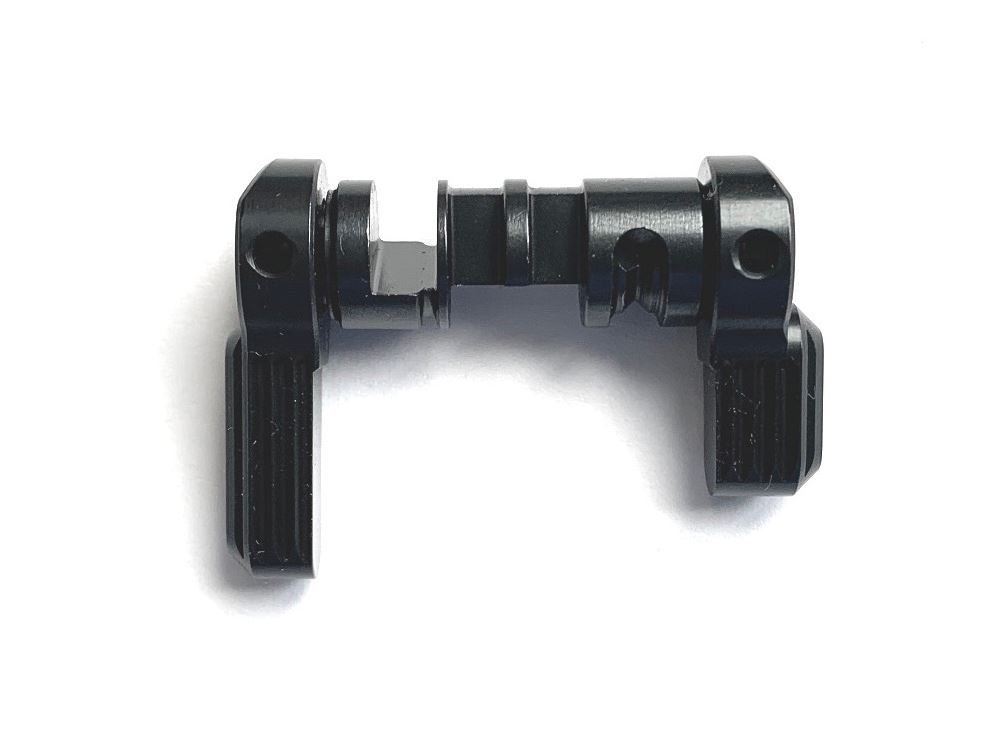

ASF-SF-50 is a short throw 0-50-180 (rotate to 50 degree for FIRE/SEMI, rotate 130 degree further for AUTO/BURST) select fire selector with standard (non-offset) levers.

NOTE: ASF-SF-50 is a SHORT THROW SAFETY, where SEMI is at 10 o’clock, not the traditional 12 o’clock. AUTO/BURST position is unchanged. Users may need to retrain for best results.

Work began in Dec. 2018 to create a safety that’s an embodiment of our not inconsiderable experience in AR15/M16 selector design and knowledge over the years.

ASF was designed from the ground up to be a defense/duty/combat safety selector, its mission is quite aptly reflected by the way its levers are attached the center, via a stainless steel roll pin. The lever to center interface is immensely strong and uses an 800 lbf 420 stainless steel roll pin to hold the levers in place but doesn’t handle any load. One of the design goals dictates there be little to no wobble between the lever and center and we’ve called for very tight tolerances (+0.001/-0.00) on the ASF’s lever and center interface to achieve that. NOTE: +/- 0.002 combined tolerance (+/- 0.001 on the levers and center’s lever attachment interface) can, on rare occasions, exhibit minute movement, this is normal and unavoidable. The 0.002 of movement is almost imperceptible and doesn’t affect ASF’s function.

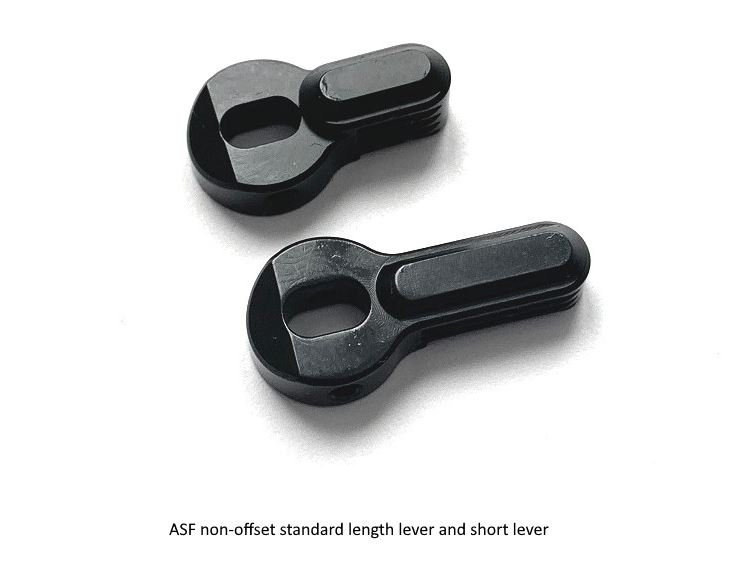

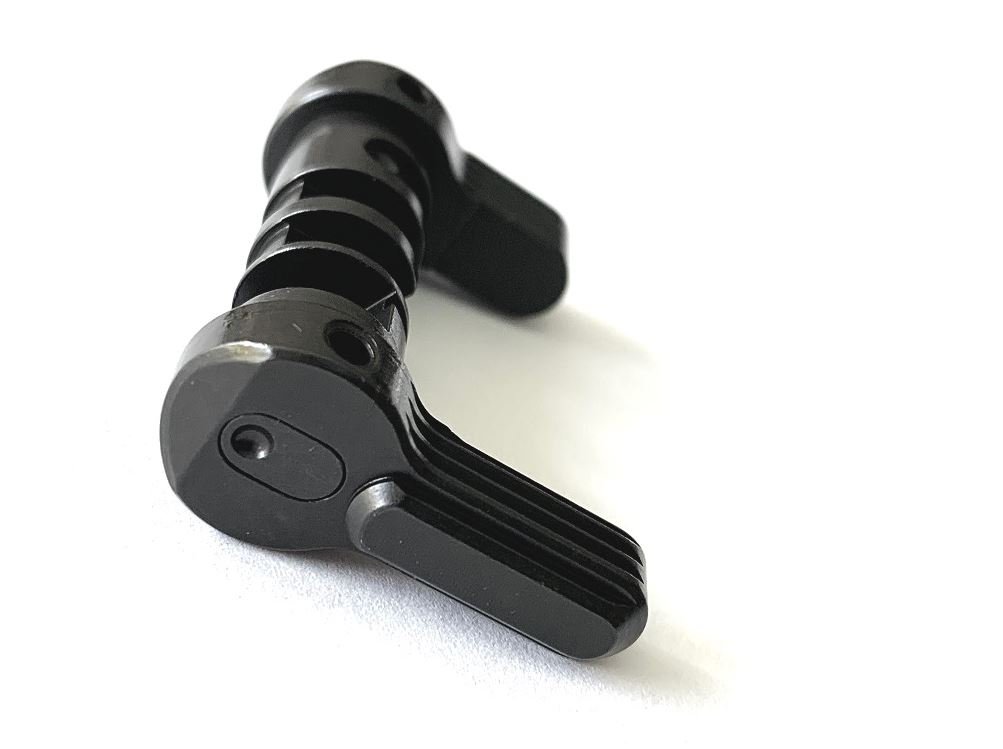

We are known to many for the dimpled pattern we use on some control surfaces (AA, or All Angles, is our designation). ASF levers are serrated, not dimpled. As the lever rotates, the user’s finger slides on the lever, anything but serrations along the length of the lever only impedes that movement and creates friction for no benefit. Serrations diagonal or perpendicular to the length of the lever are similarly unhelpful. Serrations parallel to the lever’s length help mitigate lateral movement, and do not impede the finger’s sliding motion. ASF lever’s profile isn’t square, its outer most portion is somewhat tapered for a reason. When the user’s hand holds the pistol grip, the profile of the ASF lever conforms to angle of the thumb’s pad. For our friends and customers that wish to see dimples on the ASF, there is a single dimple on both sides to function as a position indicator (in lieu of a pointer), it’s elegant and simple.

As we’re fond of saying, attention to detail matters in its application.

The end cap is for those that don’t wish to have a lever on the weak side of the receiver. With the end cap, ASF becomes a convertible selector (between ambidextrous and non-ambidextrous.)

ASF is shipped with a selector spring, an FCD 17-4 SS nitrided selector detent, two levers (or one lever, with an end cap), 4 roll pins (two are needed for installation, with 2 spares). The ASF is shipped with the levers partially assembled without roll pins.

ASF centers are billet machined in 8620, heat treated and black nitrided. Levers are billet machined in 8620 and black nitrided.

ASF is a collaboration with Sons of Liberty Gunworks. Made in the USA.

For ASF installation instructions, please visit this page: ASF Installation
